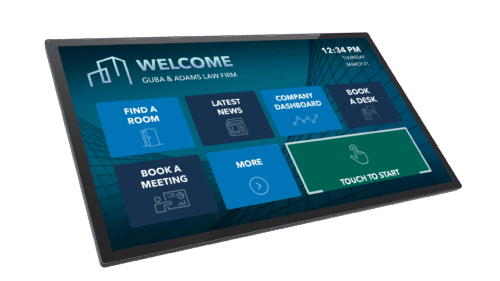

Elo 5554L 55in Digital Signage Touchscreen Display Monitor PN E104520

Elo 5554L 55in Digital Signage Touchscreen Display Monitor PN E104520 is a commercial-grade 4K interactive display with infrared multi-touch technology and anti-glare glass, designed for interactive digital signage, self-service kiosks, retail, wayfinding, hospitality, healthcare, corporate environments, education, and industrial applications. Featuring a 54.6-inch active-matrix TFT LCD with LED backlighting, native 3840 × 2160 4K UHD resolution at 60 Hz, and a 16:9 widescreen aspect ratio, the 5554L delivers detailed visuals across a large interactive workspace. PN E104520 is specifically the Infrared (IR) anti-glare configuration, supporting up to 20 simultaneous touch points for responsive multi-user interaction.

Designed for high-impact commercial content, the Elo 5554L E104520 features 500 nits typical LCD panel brightness and approximately 450 nits with the IR touch configuration, along with a 1100:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, an 8 ms typical response time, and support for 1.07 billion colors. The anti-glare surface helps reduce distracting reflections from overhead lighting, windows, and other bright light sources, making the display well suited for public-facing installations and brightly lit commercial environments.

The Elo 5554L provides extensive connectivity for integration with commercial computers, digital signage players, and embedded computing solutions. Interfaces include two HDMI 2.0 inputs, DisplayPort 1.4, USB-C, USB-A, Micro-USB Edge Connect ports, dual RJ45 connections, audio output, and RS-232 control. The display also includes dual integrated 10-watt speakers, providing powerful built-in audio for interactive presentations, digital signage, self-service, and customer engagement applications.

Built for demanding commercial deployment, the Elo 5554L is engineered for 24/7 operation in high-traffic environments and carries IK07 impact-resistance compliance. Flexible installation options support landscape, portrait, and tabletop orientations, while 400 × 400 mm and 600 × 600 mm VESA mounting patterns provide compatibility with commercial wall mounts, floor stands, kiosks, and custom installations. The display also supports mounting options for compatible Elo Backpack computers, Intel NUC systems, and BrightSign media players, allowing businesses to create integrated interactive signage solutions.

The 5554L also includes built-in IoT control with support for EloView® cloud management and Crestron Connected V2, helping organizations remotely manage compatible display settings and large-scale deployments. Elo Edge Connect support allows compatible accessories such as cameras, payment devices, NFC/RFID readers, and barcode scanners to be integrated into specialized interactive solutions. These capabilities make the E104520 a strong platform for businesses deploying connected kiosks, interactive signage, wayfinding systems, self-service applications, and large-format customer engagement experiences.

Whether you’re building an interactive digital signage installation, self-service kiosk, retail endless-aisle solution, wayfinding system, corporate display, healthcare interface, or industrial application, the Elo 5554L PN E104520 delivers the commercial durability, connectivity, and large-format touch performance expected from Elo. Its 54.6-inch 4K UHD display, 20-touch infrared technology, anti-glare glass, 500-nit panel brightness, HDMI 2.0, DisplayPort 1.4 and USB-C connectivity, integrated 20-watt stereo audio, built-in IoT management, Edge Connect expansion, IK07 durability, and 24/7 operation make it a versatile large-format interactive display for demanding commercial deployments.

Elo 5554L 55-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Infrared 20-Touch, Anti-Glare Glass, USB, Gray
