Description

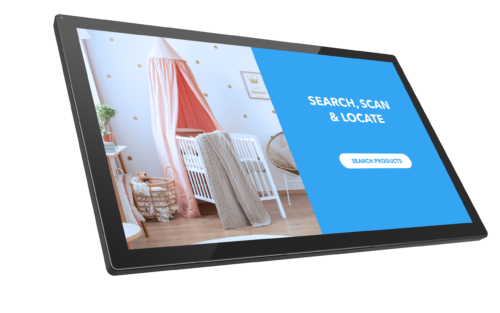

Elo 3204L 32in Interactive Display Touchscreen Monitor PN E103164

Elo 3204L 32in Interactive Display Touchscreen Monitor PN E103164 is a commercial-grade large-format interactive touchscreen designed for digital signage, self-service kiosks, interactive wayfinding, retail, hospitality, corporate collaboration, industrial control, education, and customer engagement applications. Featuring a 31.5-inch active-matrix TFT LCD with LED backlighting, native 1920 × 1080 Full HD resolution, and a 16:9 widescreen aspect ratio, the 3204L delivers a large, highly visible interactive workspace. Elo’s TouchPro® Projected Capacitive (PCAP) technology supports up to 40 simultaneous touch points with palm rejection and Touch Thru capability, providing responsive multi-user interaction for demanding commercial environments. PN E103164 is the black configuration with clear anti-friction glass and USB-C connectivity.

Designed for excellent image quality and wide visibility, the Elo 3204L E103164 features 400 nits typical LCD panel brightness, 320 nits with the PCAP touch layer, a high 3000:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, an 8 ms typical response time, and support for 16.7 million colors. Its clear anti-friction glass provides smooth touch interaction while maintaining excellent image clarity. The display’s advanced TouchPro PCAP technology also supports Touch Thru operation through up to 6 mm of glass or 3 mm of plastic with up to two touches, along with glove support up to 1.4 mm.

The Elo 3204L provides extensive connectivity for integration with commercial computers, digital signage players, and embedded computing solutions. Interfaces include two HDMI 1.4 inputs, DisplayPort 1.2, USB-C for video and touch control, USB-A, RJ45 connectivity, a 3.5 mm audio output, RS-232/MDC control, and four Elo Edge Connect Micro-USB 2.0 ports. The display also includes dual integrated 5-watt stereo speakers, providing built-in audio for interactive presentations, digital signage, self-service, and customer engagement applications.

Built for flexible commercial deployment, the Elo 3204L supports landscape, portrait, and tabletop orientations and features a 400 × 400 mm VESA mounting interface for wall mounts, floor stands, kiosks, and custom installations. The display measures approximately 30.07 × 18.04 × 1.95 inches (763.7 × 458.1 × 49.6 mm) and weighs approximately 26.17 lb (10.9 kg) unpackaged. Designed for continuous commercial operation, the 3204L supports 24-hour-per-day use and provides mounting options for compatible Elo Backpack computers, Intel NUC systems, and BrightSign media players.

The 3204L also includes built-in IoT control with support for EloView® cloud management and Crestron Connected V2, helping organizations remotely manage compatible display settings and deployments. Elo Edge Connect support allows compatible accessories such as cameras, payment devices, NFC/RFID readers, and scanners to be integrated into specialized interactive solutions. These capabilities make the E103164 a strong platform for businesses deploying connected kiosks, interactive signage, self-service systems, meeting-room displays, and other large-format commercial touchscreen applications.

Whether you’re building an interactive digital signage installation, self-service kiosk, wayfinding system, retail experience, corporate collaboration display, industrial interface, or customer engagement solution, the Elo 3204L PN E103164 delivers the commercial durability, connectivity, and advanced touch performance expected from Elo. Its 31.5-inch Full HD display, 40-touch TouchPro PCAP technology, palm rejection, Touch Thru capability, 400-nit panel brightness, HDMI, DisplayPort and USB-C connectivity, integrated 10-watt stereo audio, built-in IoT management, Edge Connect expansion, 24/7 operation, and flexible VESA mounting make it a versatile large-format interactive display for modern commercial deployments.

Elo 3204L 32-inch wide LCD Monitor, FHD, HDMI 1.4 & DisplayPort 1.2, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Clear Anti-friction Glass, USB-C, Black
