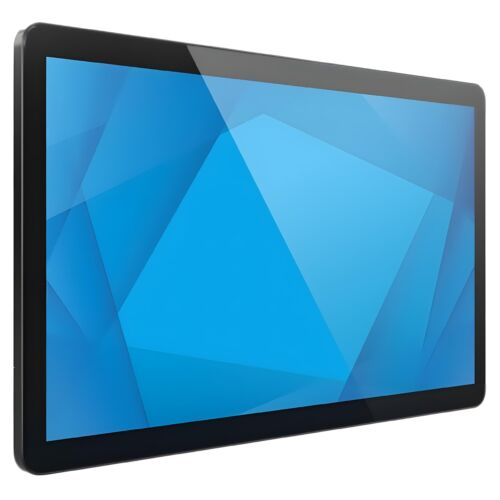

Elo 1504L 15in Touchscreen Monitor PN E969292

Elo 1504L 15in Touchscreen Monitor PN E969292 is a commercial-grade 15.6-inch Full HD touchscreen display supplied without a desktop stand, designed for point-of-sale systems, self-service kiosks, customer-facing applications, kitchen display systems, warehouse automation, access control, industrial HMI, and custom embedded installations. Featuring an active-matrix TFT LCD with a native 1920 × 1080 Full HD resolution and 16:9 aspect ratio, the 1504L delivers sharp, detailed visuals in a modern widescreen format. Elo’s TouchPro® Projected Capacitive (PCAP) technology supports up to 10 simultaneous touch points, providing fast and responsive multi-touch interaction for demanding commercial applications. PN E969292 is specifically the no-stand configuration, making it ideal for VESA-mounted and custom-integrated installations.

Designed for excellent image quality and visibility, the Elo 1504L E969292 features 450 nits typical panel brightness, 405 nits with the PCAP touch layer, a 1000:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, and support for 16.7 million colors. The optically bonded, edge-to-edge glass display features an anti-glare surface to help reduce reflections in brightly lit retail, restaurant, office, warehouse, and industrial environments. Low Blue Light settings provide additional viewing flexibility for applications involving extended periods of use.

The Elo 1504L offers extensive connectivity for integration with modern commercial systems. Interfaces include USB Type-C, USB Type-A, DisplayPort, HDMI, DC power input, and four Micro-USB Elo Edge Connect ports for compatible Elo peripherals. USB Type-C supports compatible configurations for video, touch, and power, helping simplify installation and reduce cable clutter. The monitor also includes dual integrated 2-watt speakers, making it suitable for applications requiring audio without separate external speakers.

Built for demanding commercial deployments, the Elo 1504L features IP54 protection against dust and spills along with IK08 impact protection for added durability in high-traffic environments. The no-stand E969292 configuration measures approximately 14.6 × 8.95 × 1.06 inches (371 × 227.5 × 26.9 mm) and weighs approximately 3.74 lb (1.7 kg) unpackaged. Flexible VESA mounting support allows the display to be installed on compatible monitor arms, wall mounts, poles, kiosks, POS stands, and custom equipment enclosures. The monitor is rated for a demonstrated 50,000-hour MTBF and includes a 3-year standard warranty.

Whether you’re building a point-of-sale workstation, customer-facing display, self-service kiosk, kitchen display system, warehouse terminal, interactive business application, or industrial control interface, the Elo 1504L PN E969292 delivers the commercial durability, connectivity, and responsive touch experience expected from Elo. Its 15.6-inch Full HD display, 10-touch PCAP technology, optical bonding, 450-nit panel brightness, USB-C, HDMI and DisplayPort connectivity, integrated speakers, IP54 and IK08 protection, and no-stand design make it a versatile solution for custom-mounted commercial and industrial deployments.

Elo 1504L 15.6-inch Wide LCD Desktop, Full HD 1920 x 1080, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-bezel, No Stand, USB-A, USB-C, HDMI and DP Inputs, Black, Worldwide
