Specifications
SYSTEM CONFIGURATION
Processor: Core™ i3-7100U (2.40 GHz, 3M Cache)
GPU: Intel® HD Graphic 620
System Memory: 8GB DDR4, 2133 MHz
Storage Device: 128GB SSD
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, Bluetooth 4.2 (Support BLE)
TOUCH LCD DISPLAY
Touch Screen: Projected Capacitive Touch, 10 Points
Brightness (Touch Type): 250 nits (No Touch), 212 nits (P-CAP)
Contrast Ratio: 3000:1
Aspect Ratio 16:9
View Angle: H:178˚, V:178˚
Display Surface: 7H Hardness durable glass
I/O PORTS
Serial Ports: 1 x RS-232 (DB9, NA/5V/12V, BIOS Selectable)
USB Port: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A, 1 x USB 3.1 Type C (Support Display ALT Mode and PD2.0, support 5V/3A , 12V/2.5A output, maximum 30W)
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x Mini DP
Power Input: 1 x 4 pin DC in, 24V/5A 24V/120W External Power Adapter
OPERATING SYSTEM SUPPORT
OS: Windows 10 IoT 2019 LTSC
PHYSICAL PROPERTIES
Speaker: 2 x 2W
Material: Plastic, Glass, SECC Metal
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 510.96mm x 322.28mm x 172.98mm
Net Weight (kg): 6.77kg
Gross Weight (kg): 9.79kg
Carton (W x H x D) mm: 615mm x 450mm x 330mm
VESA: 100mm x 100mm
SAFETY
Certifications: CE, FCC, LVD, RoHS
ENVIRONMENT
Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: –20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
Box Contents/What’s in the Box
Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover
OPTIONAL PERIPHERAL
MSR: MSR-215-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
Optional/Replacement Accessories
120W Power Supply | Adapter 24V 120W EA11011M(T34) EDAC: PS-3316012011F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV

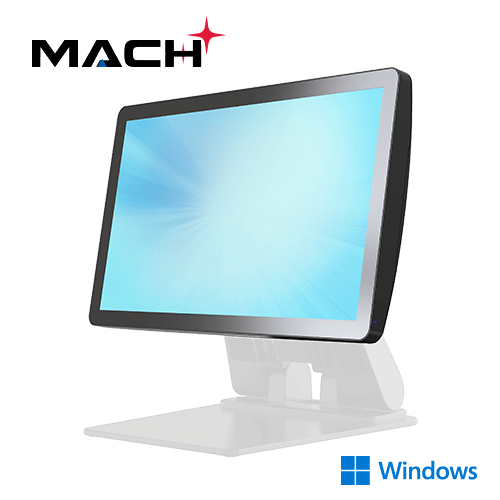

M1-156IC-W3-A2
