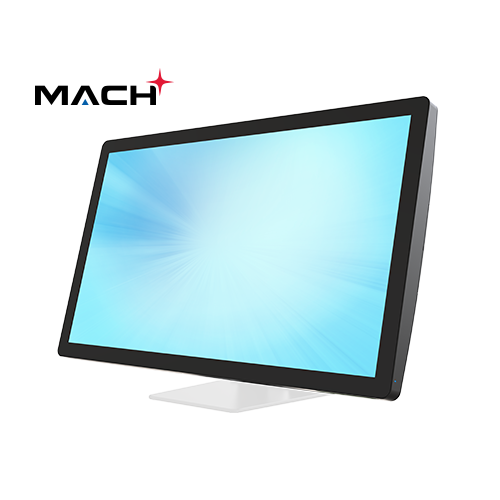

Micro Touch Desktop Touch Monitor PN M1-238DT-A1

$684.25

Specifications

Touch LCD Display

Touch Screen: Projected Capacitive
Touch Points: 10
Touch Screen Interface: USB-HID (Type C)
Surface Treatment: Etched Anti-Glare
Surface Hardness: 7H Hardness durable glass
Number of Colors: 16.7M
Response Time: 16 ms

I/O Ports

USB Port: 1 x USB-C (ALT mod for DP video/power acceptance), 4 x USB-C (peripheral connection), 1 x USB 3.1 Type A
Video Port: 1 x HDMI (up to 1920 x 1080 @60Hz)
Audio Port: 1 x Audio-Output (3.5 mm Mini-Jack)
Power Input: 1 x DC In 12V Jack Power Input

Physical Properties

Power Supply: 60W External AC Power Adaptor (100VAC ~240VAC, 50/60Hz)
Power Consumption: 46W (Typical)
Speaker: 2 x 2W Stereo
Orientation: Portrait/landscape/tabletop
Housing Color: Black
Construction: Plastic, Glass, SECC Metal
Compliance: IP65 – Front only
Dimensions (W x H x D) mm/inches: 571.8 x 341.3 x 42.2 mm, 22.51″ x 13.44″ x 1.66″ (monitor only)
Active Area: 527.04 mm x 296.46 mm
Net Weight (kg): 5.1 kg
Gross Weight (kg): 6.8 kg
Carton (W x H x D) mm: 693 x 456 x 172 mm
VESA: 100 x 100
Ball Drop: IK07

Safety

Certifications: CE, FCC, UL/cUL, NOM, RoHS, UKCA

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 20% ~ 90% RH. Non-Condensing

Box Contents/What’s in the Box

60W adapter x1, NA Power cord x1, HDMI 1.8M x1, Type C to A 1.8M x1, Type C to C 1.8M x1, Cable tie black x 2, Cable clip black x 2

Optional Peripheral

Stand: MA-STAND-A1

Optional/Replacement Accessories

50W Power Supply | Adapter 12V 50W ADP-50YH BM ERP W/O PSE: PS-3316005049F0
US Power Cable | AC Power Core 1.8M BK UL: PC-5330001214FI
EU Power Cable | AC Power Cord C13 1.8M BK EU/KR: EPC-5331021201FI
UK Power Cable: UKPC-5331010207FI
Cable HDMI V2.0 A-A L1800 BK, A.3: HDMI-5313118134FH
Cable A55336-000 USB A-B L1830 BK: USB-5313118047FV
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV

Optional Peripheral

MSR: MA-MSR-A1
Camera: MA-CAM-A1
Light Bar: MA-LBAR-A1
Bar Code Scanner: MA-SCAN-A1

M1-238DT-A1

Category: Touchscreen Display Brand: Micro Touch

Description

Micro Touch Desktop Touch Monitor PN M1-238DT-A1

Name: Micro Touch Desktop Touch Monitor PN M1-238DT-A1
Brand: Micro Touch
SKU: 12438
Availability: InStock

MICROTOUCH, 24″ DESKTOP MACH, 1920×1080, HDMI/USB-A/USB-C (ALT DP)/USB-C PERIPHERALS(x4), 10 TOUCH POINTS, PCAP, 350NITS, ETCHED ANTI-GLARE, NO STAND, 3 YEAR WARRANTY

Description

Micro Touch Desktop Touch Monitor PN M1-238DT-A1 23.8″ desktop touch monitor is designed to bridge the gap between consumer aesthetics and the next generation of interactive commercial technologies. Engineered for durability and performance, this M1-238DT-A1 features an optically bonded touchscreen. This drives industry leading optical clarity, picture quality and touch targeting while increasing durability. With our advanced etched anti-glare process, customers benefit from improved light dispersion and wear overtime. Ranging from bright retail environments to harsh industrial applications, this display has the versatility and performance that sets the standard. Featuring 4 x USB-C peripheral connections and a versatile I/O design, this display is a natural fit for
a variety of applications.

Featured Specifications

Size: 23.8″ TFT LCD
Maximum Resolution: 1920 x 1080
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
Brightness: 350 nits (No Touch), 315 nits (P-CAP)
View Angle: H: 178˚, V: 178˚
Video Port: 1 x HDMI (up to 1920 x 1080 @60Hz)
Warranty: 3 year

Stand sold separately – Part #MA-STAND-A1

Videos

Resources

Additional information

Weight	14.99128 lbs
Dimensions	6.771654 × 27.283465 × 17.952756 in
