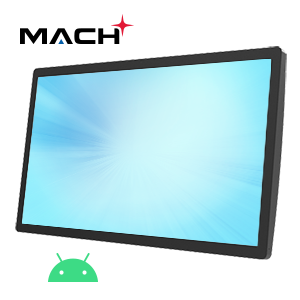

Micro Touch Desktop Mach LCD Touch Screen Monitor PN M1-101DT-A2

$409.40

Specifications

Touch LCD Display

Touch Screen: Projected Capacitive
Touch Points: 10
Touch Screen Interface: USB-HID
Display Surface: 7H Hardness durable glass

I/O Ports

USB Port: 2 x USB-C (ALT Mode for DP Video), 3 x USB-C (Peripheral Connection), 1 x USB-A
Video Port: HDMI, USB-C
Audio Port: 1 x Audio-Input (3.5 mm Mini-Jack)
Power Input: 1 x DC In 12V Jack Power Input

Physical Properties

Power Supply: 36W (12V, 3A) External Power Adaptor
Speaker: 2 x 2W Stereo
Housing Color: Black
Material: Plastic, Glass, SECC Metal
Dimensions (W x H x D) mm: 255.8 x 169.4 x 34.5 mm (monitor only)
Net Weight (kg): 0.95 kg (monitor only)
Gross Weight (kg): 1 kg
Carton (W x H x D) mm: 320x 265 x 120 mm (monitor only)
VESA: 75 x 75 mm

Safety

Certifications: CE, FCC, UL, CB, UKCA

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 10% ~ 90% RH. Non-Condensing

Optional Peripherals

MSR: MA-MSR-A1
Camera: MA-CAM-A1
Light Bar: MA-LBAR-A1
Bar Code Scanner: MA-SCAN-A1

M1-101DT-A2

Category: Android AIO Brand: Micro Touch

Description

Micro Touch Desktop Mach LCD Touch Screen Monitor PN M1-101DT-A2

Name: Micro Touch Desktop Mach LCD Touch Screen Monitor PN M1-101DT-A2
Brand: Micro Touch
SKU: 12420
Availability: InStock

MICROTOUCH, 10.1″ DESKTOP MACH, 1280×800, HDMI/USB-A/USB-C (ALT DP)/USB-C PERIPHERALS(x3), 10 TOUCH POINTS, PCAP, 350NITS, ETCHED ANTI-GLARE, STAND INCLUDED, 3 YEAR WARRANTY, 10.1″ Desktop Touch Monitor

Micro Touch Desktop Mach LCD Touch Screen Monitor PN M1-101DT-A2 is designed to bridge the gap between consumer aesthetics and the next generation of interactive commercial technologies. Engineered for durability and performance, the M1-101DT-A2 features an optically bonded touch screen. This drives industry leading optical clarity, picture quality and touch targeting while increasing durability. With our advanced etched anti-glare process, customers benefit from improved light dispersion and wear overtime. Ranging from bright retail environments to harsh industrial applications, this display has the versatility and performance that sets the standard. Featuring 3 x USB-C peripheral connections and a versatile I/O design, this display is a perfect fit for a variety of applications.

Featured Specifications

Size: 10.1” TFT LCD
Maximum Resolution: 1280 x 800
Contrast Ratio: 1000:1
Aspect Ratio: 16:10
Brightness: 350 nits (No Touch), 290 nits (P-CAP)
View Angle: H:160˚, V:160˚
Video Port: HDMI, USB-C
Warranty: 3 year

Videos

Resources

Additional information

Weight	2.2046 lbs
Dimensions	4.724409 × 12.598425 × 10.433071 in
