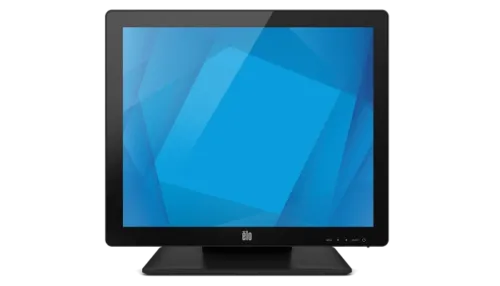

Elo Touch Solutions 17 Inch LCD Touchscreen Monitor PN E603162

Elo 1715L – 17″ Touchscreen Monitor

Elo Touch Solutions 17 Inch LCD Touchscreen Monitor PN E603162 is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchscreen monitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. AccuTouch touchscreen technology is based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.

The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.

The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.

The 17-inch touchscreen monitor features AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.

Other Features

• Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
• Designed for touch features such as a stable tilt stand
• Long-lasting product cycle
• Sealed touchscreen against dirt, dust and liquids
• Dual serial/USB interface
• Removable stand and VESA mounting option
• Mounting holes on stand bottom for tabletop security
• Digital on-screen display (OSD)
• Worldwide agency approvals
• Three-year standard warranty

Specifications

• ---

  Part Number(s)

  IntelliTouch (Americas, EMEA) – E719160
  AccuTouch (Americas, EMEA) – E603162

  Enclosure Color

  Dark Gray

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) – Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch

  Diagonal Size

  17” diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  5:4

  Active Area

  13.3″ x 10.6″ / 338mm x 270mm

  Resolution

  1280 x 1024

  Other Supported Resolutions

  640 x 480 66 Hz
  640 x 480 60, 72, 75 Hz
  720 x 350 70 Hz
  720 x 400 70 Hz
  800 x 600 56, 60, 72, 75 Hz
  832 x 624 75 Hz
  1024 x 768 65 Hz
  1024 x 768 60, 70, 75 Hz
  1152 x 864 75 Hz
  1280 x 960 60 Hz
  1280 x 1024 60, 75 Hz

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  IntelliTouch: 225 nits

  Response Time-total (typical)

  20 msec

  Contrast Ratio

  1000:1

  Power

  Internal AC, power connector-C6 type
  Input voltage range: 100-240VAC, 50/60Hz

  Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth)

  Monitor input power signal specifications: 12VDC +/- 5%

  Video

  VGA (VGA DE-15 (DB-15) Male connecter cable included)

  Input Video Horizontal Sync frequency range: 31.5 – 80 KHz
  Input Video Vertical Sync (frame rate) frequency range: 56.3 – 75Hz

  Power Consumption (Typical)

  Monitor only:
  ON: 10.52 W
  SLEEP: 1.34 W
  OFF: 0.3 W

  I/O Ports

  VGA
  DC jack
  AC jack
  USB Type B
  RS232 (DB-9)

  On Screen Display

  Accessible through switches along the bottom.

  Controls: Menu, Power, Up, Down, Select

  Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  Monitor Dimensions (without Stand)

  13.0″ x 15.4″ x 2.44″ / 331 mm x 391 mm x 62 mm

  Monitor Dimensions (with Stand)

  14.4″ x 15.4″ x 8.0″ / 366 mm x 391 mm x 203 mm

  Shipping Box Dimensions

  10.2″ x 19.4″ x 17.6″ / 260 mm x 494 mm x 448 mm

  Weight (with stand)

  15.2 lb / 6.9 kg

  Shipping Weight (With stand)

  21.2 lb / 9.6 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 4-hole 100mm mounting interface on rear of unit

  Warranty

  3-year

  Extended Service Options

  4 year warranty coverage – Elo P/N: E898247
  5 year warranty coverage – Elo P/N: E898449
  3 year warranty coverage + AUR – Elo P/N: E898648
  4 year warranty coverage + AUR – Elo P/N: E894921
  5 year warranty coverage + AUR – Elo P/N: E895125

  Regulatory approvals and declarations

  Canada CUL, IC
  China CCC
  Europe CE
  United Kingdom UKCA
  Korea KCC
  Taiwan BSMI
  United States FCC, UL
  Japan VCCI
  International CB
  Australia RCM
  Russia EAC
  Mexico NoM
  RoHS, China RoHS, WEEE, REACH

  What’s in the Box

  Touch monitor
  Quick Install Guide
  3x Tie wraps
  VGA cable
  Touch USB cable
  NA Power cable
  EU Power cable
  EEI Label

  Optional Peripherals

  North America power adapter and cable kit – Elo P/N: E005277
  European & Korea power adapter and cable kit – Elo P/N: E571601
  UK power adapter and cable kit – Elo P/N: E180092
  China power adapter and cable kit – Elo P/N: E558862
  Taiwan power adapter and cable kit – Elo P/N: E818655
  Japan power adapter and cable kit – Elo P/N: E182546
  Argentina power adapter and cable kit – Elo P/N: E887099
  Australia power adapter and cable kit – Elo P/N: E637593

Elo 1715L 17-inch LCD Desktop, AccuTouch (Resistive) Single-touch, USB & RS232 Controller, Anti-glare, Bezel, VGA video interface, Gray, Worldwide, ET1715L-7CWB-1-GY-G
