Description

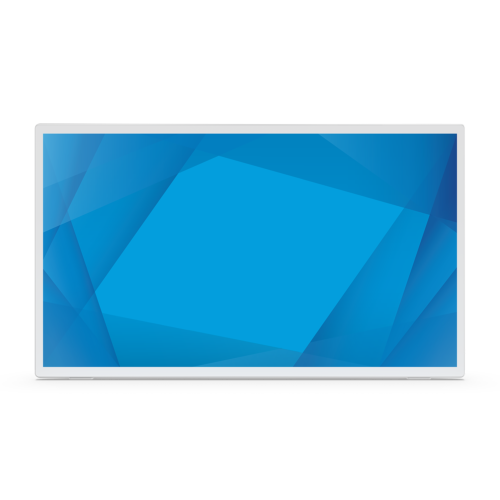

Elo 2770L 27in LCD Touchscreen Monitor PN E510644

Elo 2770L 27in LCD Touchscreen Monitor PN E510644 is a commercial-grade interactive display designed for point-of-sale systems, self-service applications, interactive digital signage, document signing, retail, hospitality, customer-facing workstations, control panels, and industrial environments. Featuring a 27-inch active-matrix TFT LCD with LED backlighting, native 1920 × 1080 Full HD resolution, and a 16:9 widescreen aspect ratio, the 2770L provides a spacious interactive workspace in a modern narrow-border design. Elo’s TouchPro® Projected Capacitive (PCAP) technology supports up to 10 simultaneous touch points, delivering responsive multi-touch interaction for demanding commercial applications. PN E510644 is specifically the black enclosure with clear, scratch-resistant glass surface configuration.

Designed for excellent image quality and comfortable viewing, the Elo 2770L E510644 features 300 nits typical LCD panel brightness, 270 nits with the TouchPro PCAP touch layer, a 1000:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, a typical 14 ms response time, and support for 16.7 million colors. The clear glass surface provides excellent image clarity and a clean commercial appearance, while Low Blue Light and flicker-free technologies help improve viewing comfort during extended use. The monitor also features a touch-accessible On-Screen Display, allowing compatible display settings to be managed directly through the touchscreen interface.

The Elo 2770L provides flexible connectivity for integration with modern and legacy commercial systems. Standard interfaces include HDMI, DisplayPort, and VGA video inputs, USB 2.0 Type-B for the touch interface, two USB 2.0 Type-A ports, and audio input/output connectivity. The monitor also includes dual integrated 2-watt speakers, providing built-in audio without requiring separate external speakers. This broad connectivity makes the E510644 suitable for POS computers, business PCs, digital signage players, industrial computers, self-service systems, and other professional host devices.

Built for demanding commercial deployment, the Elo 2770L features IK07 impact resistance and a durable, scratch-resistant glass surface. Its integrated flexible kickstand adjusts from approximately 20 to 70 degrees, allowing users to position the display for comfortable desktop interaction or collapse the stand for alternative installations. The monitor also supports a 100 × 100 mm VESA mounting interface, providing flexibility for installation on compatible wall mounts, monitor arms, poles, kiosks, and custom commercial mounting systems. The monitor measures approximately 24.65 × 14.68 × 1.72 inches (626.2 × 372.8 × 43.8 mm) without the stand and weighs approximately 13.89 lb (6.3 kg).

Whether you’re building a point-of-sale workstation, self-service system, interactive customer display, digital signage installation, document-signing station, restaurant terminal, medical workstation, or industrial control interface, the Elo 2770L PN E510644 delivers the durability, connectivity, and responsive touch performance expected from Elo. Its 27-inch Full HD display, 10-touch TouchPro PCAP technology, clear scratch-resistant glass, IK07-rated construction, HDMI, DisplayPort and VGA connectivity, integrated USB hub, dual speakers, adjustable kickstand, and VESA mounting support make it a versatile touchscreen solution for modern commercial deployments.

Elo 2770L 27-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Clear, Zero-bezel, Collapsible Stand, VGA, DP and HDMI video interface, Black, Worldwide
