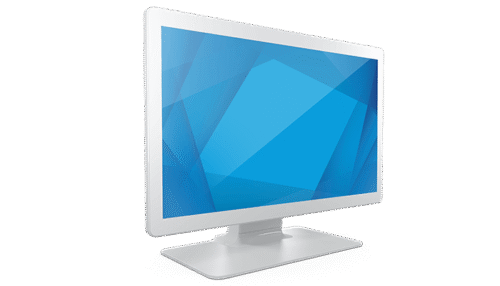

Elo 2403LM 24in DICOM Medical Grade Touchscreen Monitor PN E659395

Elo 2403LM 24in DICOM Medical Grade Touchscreen Monitor PN E659395 is a purpose-built healthcare touchscreen designed for clinical image review, electronic medical record documentation, patient rooms, nurse stations, laboratories, pharmacies, medical carts, operating environments, and integration into medical equipment. Featuring a 23.8-inch active-matrix TFT LCD with LED backlighting, native 1920 × 1080 Full HD resolution, and a 16:9 widescreen aspect ratio, the 2403LM provides a spacious interactive workspace for demanding healthcare applications. Elo’s TouchPro® Projected Capacitive (PCAP) technology supports up to 10 simultaneous touch points and operation with compatible fingers, gloves, and styluses. PN E659395 is specifically the white TouchPro PCAP configuration with an anti-glare surface and included desktop stand.

Designed to support consistent clinical image review, the Elo 2403LM E659395 includes DICOM Part 14 functionality and is factory calibrated in accordance with AAPM secondary-display guidelines and the DICOM 14 GSDF curve. The monitor features 250 nits typical panel brightness, 225 nits through the TouchPro PCAP layer, a 1000:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, a typical 16 ms response time, and support for 16.7 million colors. Its anti-glare surface treatment helps reduce distracting reflections from overhead lighting and other bright sources commonly found in healthcare environments.

The Elo 2403LM is engineered for healthcare environments with an IP54-rated enclosure, helping protect the monitor against dirt, dust, and liquids while supporting routine cleaning and sanitization. The display is designed to meet IEC 60601-1 healthcare requirements and includes an IEC 60601-compliant power solution. These healthcare-focused capabilities make the 2403LM suitable for professional clinical workflows, although intended medical-device applications may require additional regulatory review depending on the final system and use case.

Flexible connectivity allows the E659395 to integrate with healthcare computers, clinical workstations, medical carts, and compatible medical systems. Interfaces include HDMI, VGA, USB Type-B, USB 2.0 Type-A, four Micro-USB peripheral ports, a combination audio jack, and DC power input. The monitor also includes dual integrated 2-watt speakers, providing built-in audio without requiring separate external speakers. The four Micro-USB side ports provide additional peripheral-expansion options, while USB and optional serial touch connectivity support different system configurations.

Built for flexible clinical deployment, the Elo 2403LM E659395 includes a desktop stand and supports a 100 × 100 mm VESA mounting interface for compatible wall mounts, medical carts, monitor arms, and other healthcare installations. With the stand, the monitor measures approximately 17.04 × 22.62 × 9.17 inches (432.9 × 574.6 × 233 mm). The monitor without its stand measures approximately 13.94 × 22.62 × 1.69 inches (354.1 × 574.6 × 42.8 mm). Elo also backs the 2403LM with a 3-year standard warranty.

Whether you’re equipping a nurse station, patient room, pharmacy, laboratory, medical cart, clinical documentation workstation, or healthcare equipment platform, the Elo 2403LM PN E659395 delivers the durability, touch performance, and healthcare-focused features expected from Elo. Its 23.8-inch Full HD display, 10-touch TouchPro PCAP technology, DICOM Part 14 support, anti-glare surface, IP54 protection, IEC 60601 compliance, HDMI and VGA connectivity, integrated speakers, white enclosure with included stand, and flexible VESA mounting make it a versatile medical-grade touchscreen monitor for professional healthcare environments.

Elo 2403LM 24-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, Stand, VGA and HDMI Video Interface, White, Worldwide
