Description

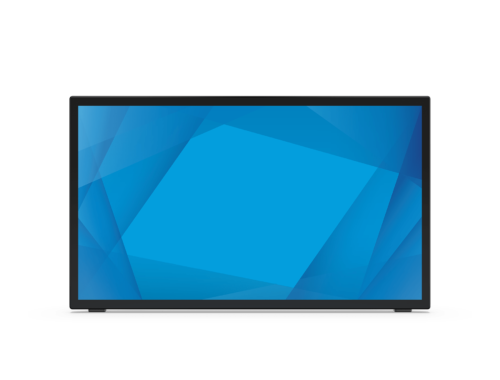

Elo 2270L 22in Touchscreen LCD Monitor PN E510259

Elo 2270L 22in Touchscreen LCD Monitor PN E510259 is a commercial-grade interactive display designed for point-of-sale systems, self-service applications, interactive digital signage, document signing, retail, hospitality, customer-facing workstations, and industrial environments. Featuring a 21.5-inch active-matrix TFT LCD with LED backlighting, native 1920 × 1080 Full HD resolution, and a 16:9 widescreen aspect ratio, the 2270L provides a large, clear interactive workspace in a modern, narrow-border design. Elo’s TouchPro® Projected Capacitive (PCAP) technology supports up to 10 simultaneous touch points, delivering responsive multi-touch interaction for demanding commercial applications. PN E510259 is the black enclosure with clear glass surface configuration.

Designed for excellent image quality and comfortable viewing, the Elo 2270L E510259 features 250 nits typical LCD panel brightness, 225 nits with the TouchPro PCAP touch layer, a 1000:1 contrast ratio, wide 178-degree horizontal and vertical viewing angles, a typical 14 ms response time, and support for 16.7 million colors. The scratch-resistant, edge-to-edge glass surface provides a clean commercial appearance, while Low Blue Light and flicker-free features are designed to improve viewing comfort during extended use. The monitor also includes a touch-enabled On-Screen Display, allowing users to adjust compatible display settings directly through the touchscreen interface.

The Elo 2270L provides flexible connectivity for integration with modern and legacy commercial systems. Standard interfaces include HDMI, DisplayPort, and VGA video inputs, USB 2.0 Type-B for the touch interface, two USB 2.0 Type-A ports, and audio input/output connectivity. The monitor also includes dual integrated 2-watt speakers, providing built-in audio without requiring separate external speakers. This broad connectivity makes the E510259 suitable for POS computers, business PCs, digital signage players, industrial computers, self-service systems, and other professional host devices.

Built for demanding commercial deployment, the Elo 2270L features IK07 impact resistance and a scratch-resistant glass surface. Its integrated flexible stand can be adjusted from approximately 20 to 70 degrees, allowing users to position the display for comfortable desktop interaction. The monitor also supports 100 × 100 mm VESA mounting, providing the flexibility to install it on compatible wall mounts, monitor arms, poles, kiosks, and custom commercial mounting systems. The display measures approximately 19.87 × 11.91 × 1.63 inches (504.7 × 302.4 × 41.3 mm) without the stand and weighs approximately 9.04 lb (4.1 kg) unpackaged.

Whether you’re building a point-of-sale workstation, self-service system, interactive customer display, digital signage installation, document-signing station, restaurant terminal, or industrial control interface, the Elo 2270L PN E510259 delivers the durability, connectivity, and responsive touch performance expected from Elo. Its 21.5-inch Full HD display, 10-touch TouchPro PCAP technology, clear scratch-resistant glass, IK07-rated construction, HDMI, DisplayPort and VGA connectivity, integrated USB hub, dual speakers, adjustable stand, and VESA mounting support make it a versatile touchscreen solution for modern commercial deployments.

Elo 2270L 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Clear, Zero-bezel, Collapsible Stand, VGA, DP and HDMI video interface, Black, Worldwide
