Description

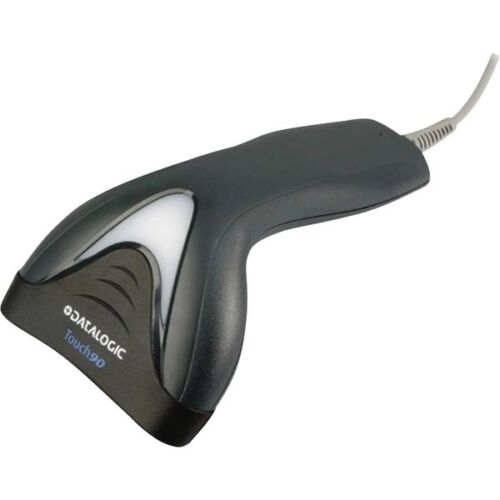

Datalogic Touch TD1170 Handheld Barcode Scanner PN TD1170-BK-90

The Datalogic Touch TD1170 Handheld Barcode Scanner PN TD1170-BK-90 is a dependable corded 1D linear barcode scanner designed for retail, healthcare, light industrial, office, library, hospitality, and point-of-sale (POS) applications. As part of the Datalogic Touch™ TD1100 Series, the TD1170-BK-90 features a 90 mm (3.5-inch) wide reading window, making it especially effective for scanning wide barcodes, shipping labels, inventory labels, utility bills, and other linear barcode formats. The TD1170-BK-90 utilizes an RS-232 / Keyboard Wedge interface and is supplied as scanner only, with cables sold separately.

Designed for low- to medium-volume barcode scanning, the Touch 90 Lite offers excellent reading performance on virtually all 1D barcodes, including damaged, poorly printed, or low-contrast labels. Its high-performance CCD linear imager delivers scan speeds of up to 256 scans per second, providing fast and reliable barcode capture without the moving parts found in laser scanners. The wide scan window allows users to easily read larger barcode labels while minimizing alignment errors.

The TD1170-BK-90 supports a broad range of barcode symbologies, including:

• UPC-A / UPC-E
• EAN-8 / EAN-13
• Code 39
• Code 128
• Code 93
• Codabar
• Interleaved 2 of 5
• Standard 2 of 5
• MSI/Plessey
• GS1 DataBar™
• GS1 DataBar Expanded
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional

Its versatile decoding capability makes it suitable for retail checkout, healthcare identification, warehouse inventory, document tracking, ticket validation, and general-purpose business applications.

The scanner incorporates a 90 mm reading window that is optimized for wider barcodes commonly found on shipping cartons, warehouse labels, invoices, and utility statements. The 4 mil resolution enables accurate decoding of small linear barcodes while maintaining excellent performance on larger labels. With reading distances of up to approximately 150 mm (6 inches) depending on barcode size and print quality, the TD1170 provides reliable close-range scanning for everyday applications.

Designed for long-term durability, the TD1170-BK-90 features a lightweight ergonomic housing that reduces operator fatigue during extended use. The scanner withstands repeated drops of up to 1.5 meters (5 feet) onto concrete and carries an IP30 environmental sealing rating, making it suitable for retail counters, healthcare environments, libraries, offices, and light industrial facilities. Audible beeps and bright LED indicators provide immediate confirmation of successful barcode reads, helping improve user efficiency and reduce scanning errors.

The RS-232 / Keyboard Wedge interface allows the TD1170-BK-90 to integrate with a wide variety of legacy POS terminals, industrial controllers, embedded systems, and host computers. Installation is straightforward using the appropriate interface cable, and the scanner can be configured using Datalogic Aladdin™ software for customized settings, barcode programming, and firmware management.

Typical applications include:

• Retail point-of-sale (POS)
• Pharmacy and healthcare registration
• Library circulation desks
• Government offices
• Hospitality and ticketing
• Warehouse inventory control
• Shipping and receiving
• Asset tracking
• Office document management
• Utility bill processing

Whether you’re replacing an existing scanner or deploying a reliable barcode reader for everyday operations, the Datalogic Touch TD1170 Handheld Barcode Scanner PN TD1170-BK-90 offers exceptional value with its 90 mm wide scan window, fast 1D linear imaging technology, RS-232/Keyboard Wedge connectivity, durable construction, and five-year manufacturer’s warranty, making it an excellent solution for businesses requiring dependable linear barcode scanning.

TD1100 90 Lite, 1D Black, RS-232/KBW Interface – no cable
