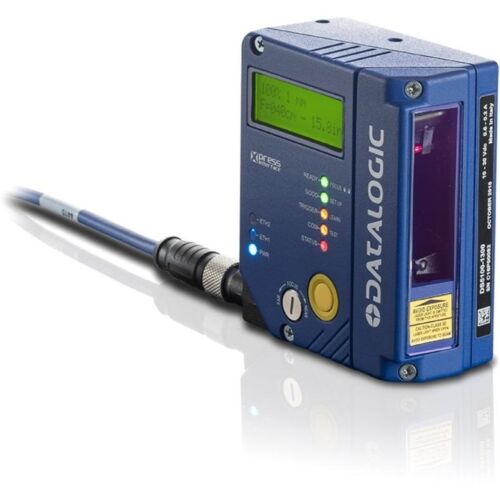

Datalogic DS5100-1320 Fixed Mount Barcode Scanner PN 931061335

The Datalogic DS5100-1320 Fixed Mount Barcode Scanner PN 931061335 is a high-performance fixed-mount industrial laser barcode scanner engineered for automated identification in manufacturing, warehouse automation, transportation, logistics, food and beverage processing, pharmaceutical production, packaging, and automotive assembly. As part of the Datalogic DS5100 Series, this model features a medium-range laser scan engine, Ethernet connectivity, and an oscillating mirror (OM) configuration, providing outstanding barcode reading performance across a wide range of industrial automation applications.

The DS5100-1320 utilizes Datalogic’s advanced DST™ (Digital Signal Technology) to deliver stable and reliable decoding under challenging operating conditions. Combined with the proprietary ACR™ 4 (Advanced Code Reconstruction) algorithm, the scanner accurately reads damaged, low-contrast, poorly printed, and partially obscured barcodes while maintaining excellent performance at high conveyor speeds. This makes the DS5100 ideal for production lines, automated warehouses, end-of-line inspection, pallet identification, and intralogistics systems.

Part Number 931061335 is factory configured with:

• Datalogic DS5100-1320 Fixed Mount Barcode Scanner
• Medium-Range Laser Scan Engine
• Oscillating Mirror (OM)
• Ethernet Interface
• Industrial Fixed-Mount Housing
• IP65 Environmental Protection
• X-PRESS™ Human Machine Interface
• Genius™ Configuration Software Support

The scanner supports a wide variety of linear barcode symbologies, including:

• Code 39
• Code 93
• Code 128
• EAN/UPC
• EAN-128 (GS1-128)
• Codabar
• Interleaved 2 of 5
• Standard 2 of 5
• Pharmacode
• Plessey
• ISBT-128

Its powerful laser engine delivers scan rates of up to 800 scans per second, allowing accurate barcode capture on fast-moving production lines and conveyor systems.

One of the major advantages of the DS5100 Series is its flexible industrial networking support. The scanner includes integrated Ethernet connectivity and supports industrial communication protocols including:

• Ethernet
• EtherNet/IP
• PROFINET IO
• ID-NET™ high-speed networking
• Ethernet Bus Connection (EBC™)

These capabilities simplify integration into PLC-controlled automation systems while reducing installation costs by eliminating many external communication modules.

Designed for harsh industrial environments, the DS5100-1320 features a rugged IP65-rated enclosure that protects against dust, dirt, and water ingress. Its compact housing incorporates a rotating connector block, allowing flexible cable routing during installation while simplifying maintenance. The integrated X-PRESS™ interface and multilingual display provide fast diagnostics, visual status indication, and simplified setup directly at the scanner. Configuration and firmware management are performed using Datalogic Genius™ software.

Typical applications include:

• Manufacturing automation
• Automotive assembly
• Food and beverage production
• Pharmaceutical packaging
• Warehouse automation
• Conveyor systems
• End-of-line verification
• Pallet identification
• Distribution centers
• Intralogistics
• Material handling

Whether you’re deploying a new automated production line or upgrading an existing barcode identification system, the Datalogic DS5100-1320 Fixed Mount Barcode Scanner PN 931061335 delivers exceptional performance through its medium-range laser engine, oscillating mirror technology, 800 scans-per-second capability, industrial Ethernet connectivity, IP65-rated construction, and advanced barcode reconstruction algorithms. It remains a proven solution for demanding industrial barcode reading applications where speed, reliability, and long-term durability are essential.

DS5100-1320 MEDIUM RANGE,ETH,OM
