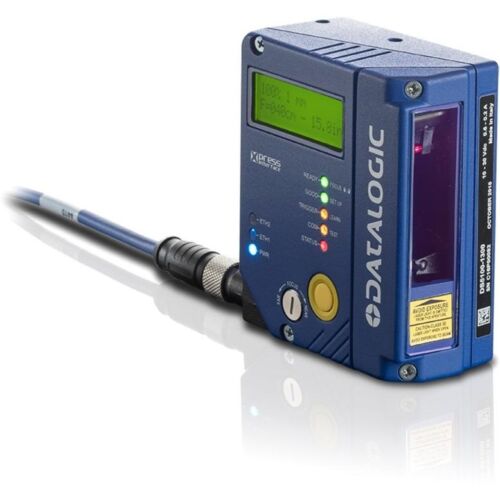

Datalogic DS5100-1220 2D Medium Range Laser Scanner PN 931061345

Datalogic DS5100-1220 2D Medium Range Laser Scanner PN 931061345 is a rugged fixed-mount industrial barcode scanner engineered for automated manufacturing, warehouse automation, material handling, packaging lines, conveyor systems, and logistics applications that require fast, dependable barcode identification. This configuration is the DS5100-1220 Medium Range model with Serial (RS-232/RS-485) communications and Oscillating Mirror (OM) optics, providing an expanded reading area for applications where barcode position and orientation may vary. Designed for continuous industrial operation, the DS5100 delivers exceptional decoding performance while reducing installation complexity and increasing production efficiency.

Built around Datalogic’s advanced industrial scanning technology, the DS5100-1220 reads both 1D and 2D barcodes at speeds of up to 800 scans per second, ensuring rapid barcode capture even on fast-moving production lines. The medium-range optical system provides an effective reading distance of approximately 200 mm to 1,000 mm (7.9 to 39.4 inches), while the integrated oscillating mirror increases the scan area for improved first-pass read rates. The scanner supports a wide variety of barcode symbologies, including Code 128, Code 39, Code 93, Codabar, Pharmacode, Data Matrix, PDF417, QR Code, and additional industrial barcode formats commonly used in manufacturing and warehouse environments.

Constructed with a durable IP65-rated aluminum housing, the DS5100 is designed to withstand dust, moisture, vibration, and demanding industrial conditions. Its mechanically adjustable focus with locking mechanism allows installers to optimize reading performance for specific conveyor widths and product distances. The scanner operates from a 10–30 VDC power supply, consumes approximately 6 watts, and supports standard RS-232 and RS-485 serial communications for seamless integration with PLCs, industrial controllers, machine vision systems, and factory automation equipment. Its compact footprint makes installation simple even where mounting space is limited.

Whether deployed in automotive manufacturing, food and beverage production, pharmaceutical packaging, distribution centers, or automated conveyor systems, the Datalogic DS5100-1220 2D Medium Range Laser Scanner PN 931061345 delivers industrial-grade reliability, high-speed decoding, and dependable medium-range barcode reading. Its oscillating mirror optics, rugged IP65 construction, fast scan rate, and proven Datalogic performance make it an excellent solution for organizations seeking to improve traceability, automation accuracy, and production throughput.

931061345,, DS5100-1220 MEDIUM RANGE,SER,OM
