Description

APC/Schneider Electric RACKPDU PN AP7800B

Name: APC/Schneider Electric RACKPDU PN AP7800B
Brand: APC/Schneider Electric
SKU: AP7800B
Availability: InStock

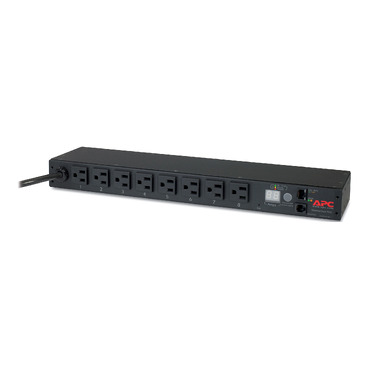

APC NetShelter Metered Rack PDU, 1U, 15A, 100/120V, 8 NEMA 5-15 outlet

APC/Schneider Electric RACKPDU PN AP7800B is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 15A and operates at 120V. The PDU features 8 NEMA 5-15R outlets and a 12-foot power cord with a NEMA 5-15P plug. It has a load capacity of 1440 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Specifications

Overview
Lead time	Usually in Stock

Main
Product or Component Type	PDU
PDU Type	Metered
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Cord retention bracket(s) Installation guide Rack Mounting brackets User Manual

Complementary
Input Voltage	100 V 120 V
Height	1.7 in (44 mm)
Width	17.5 in (444 mm)
Output Voltage	120 V
Depth	4.02 in (102 mm)
Net Weight	3.81 lb(US) (1.73 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	NEMA 5-15P
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Line Rated Current	12 A
Input current limits	15 A
Load Capacity	1440 VA
Input Frequency	50/60 Hz
Outlet type and quantity	8 NEMA 5-15R

Environment
Product Certifications	cUL Listed CSA METI Denan UL Listed VCCI
Standards	FCC Part 15 class A ICES-003 UL 60950
Ambient air temperature for operation	23…113 °F (-5…45 °C)
Relative Humidity	5…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	5…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
Category	11309-APC RESALE PRODUCTS
Discount Schedule	APC1
GTIN	731304331452
Returnability	No
Country of origin	PH

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.5 in (6.4 cm)
Package 1 Width	13.3 in (33.7 cm)
Package 1 Length	18.5 in (47 cm)
Package weight(Lbs)	6.42 lb(US) (2.91 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	7.35 lbs
Dimensions	13.6 × 19.5 × 2.7 in
