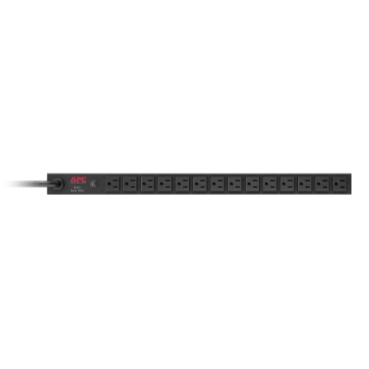

APC/Schneider Electric RACK POWER DISTRIBUTION UNIT-VERTICAL PN AP9551

$370.00

Features 14 NEMA 5-15R outlets for extensive power distribution

Vertical mounting to save rack space

Supports up to 20A, 120V power distribution

Includes toolless mounting kit for quick setup

RACK POWER DISTRIBUTION UNIT-VERTICAL

SKU: AP9551 Category: APC Power Distribution Units Brand: APC/Schneider Electric

Description

APC/Schneider Electric RACK POWER DISTRIBUTION UNIT-VERTICAL PN AP9551

Name: APC/Schneider Electric RACK POWER DISTRIBUTION UNIT-VERTICAL PN AP9551
Brand: APC/Schneider Electric
SKU: AP9551
Availability: InStock

APC NetShelter Basic Rack PDU, Zero U, 20A, 120V, 14 NEMA 5-15 outlets

APC/Schneider Electric RACK POWER DISTRIBUTION UNIT-VERTICAL PN AP9551 is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 14 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a tool-less mounting kit.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Rack Mounting brackets Toolless Mounting Kit User Manual

Complementary
Input Voltage	100 V 120 V
Height	24.02 in (610 mm)
Width	1.7 in (42 mm)
Output Voltage	120 V
Depth	1.7 in (44 mm)
Net Weight	4.9 lb(US) (2.2 kg)
Mounting Location	Side
Mounting preference	No preference
Input Plug Type	NEMA L5-20P
Mounting Mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Line Rated Current	16 A
Acceptable Input Voltage	90…132 V
Max line current	20 A
Input current limits	20 A
Load Capacity	1920 VA
Input Frequency	50/60 Hz
Outlet type and quantity	14 NEMA 5-15R

Environment
Product Certifications	cUL Listed CSA UL Listed
Ambient air temperature for operation	32…113 °F (0…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304021247

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	25.5 in (64.8 cm)
Package 1 Width	6.0 in (15.2 cm)
Package 1 Length	7.008 in (17.8 cm)
Package weight(Lbs)	6.44 lb(US) (2.92 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	6.25 lbs
Dimensions	7.1 × 6.5 × 25.4 in
