Description

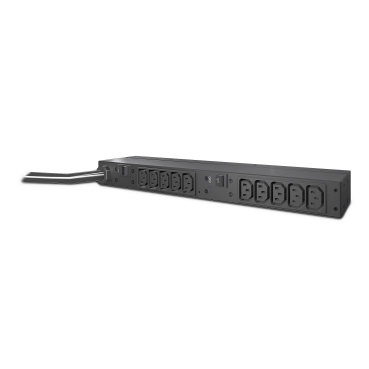

APC/Schneider Electric Rack PDU PN AP9571A

Name: APC/Schneider Electric Rack PDU PN AP9571A
Brand: APC/Schneider Electric
SKU: AP9571A
Availability: InStock

APC NetShelter Basic Rack PDU, 1U, 30A, 208V, 10 C13 outlets

APC/Schneider Electric Rack PDU PN AP9571A known for Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specifications

Overview
Presentation	Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets User Manual

Complementary
Input Voltage	200 V 208 V 230 V
Height	1.7 in (44 mm)
Width	17.5 in (445 mm)
Output Voltage	208 V
Depth	3.03 in (77 mm)
Net Weight	5.62 lb(US) (2.55 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	NEMA L6-30P
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Line Rated Current	24 A
Acceptable Input Voltage	200…240 V
Max line current	30 A
Input current limits	30 A
Load Capacity	4992 VA
Input Frequency	50/60 Hz
Outlet type and quantity	10 IEC 60320 C13

Environment
Product Certifications	cUL Listed PSE UL Listed
Standards	UL 60950
Ambient air temperature for operation	23…113 °F (-5…45 °C)
Relative Humidity	5…95 %
Operating altitude	0…15000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	5…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304272755

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.7 in (17.1 cm)
Package 1 Width	6.9 in (17.4 cm)
Package 1 Length	19.02 in (48.3 cm)
Package weight(Lbs)	8.02 lb(US) (3.64 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	8.1 lbs
Dimensions	6.2 × 19.3 × 6.9 in
