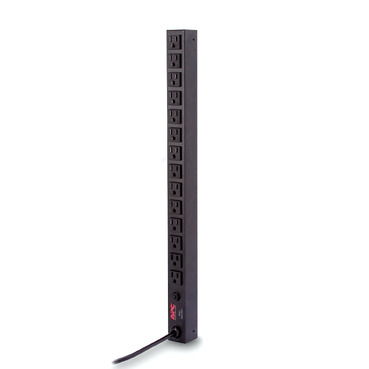

APC/Schneider Electric Rack PDU PN AP9567

$373.00

Reliable rack power distribution to power servers, switches, and network devices

Vertical Basic PDU is rack mountable

Input: NEMA 5-15P

Outlets: (14) NEMA 5-15R

Ultralow-profile, space-saving design

Rack PDU, Basic, Zero U, 15A,120V, (14)

Description

APC/Schneider Electric Rack PDU PN AP9567

Name: APC/Schneider Electric Rack PDU PN AP9567
Brand: APC/Schneider Electric
SKU: AP9567
Availability: InStock

APC NetShelter Basic Rack PDU, 0U, 15A, 100/120V, 14 NEMA 5-15 outlets

APC/Schneider Electric Rack PDU PN AP9567 distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Tool-less Mounting Kit.

Specifications

Overview
Presentation	APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets Toolless Mounting Kit

Complementary
Input Voltage	100 V 120 V
Height	24.02 in (610 mm)
Width	1.7 in (44 mm)
Output Voltage	100 V 120 V
Depth	1.7 in (44 mm)
Net Weight	4.81 lb(US) (2.18 kg)
Mounting Location	Side
Mounting preference	No preference
Input Plug Type	NEMA 5-15P
Mounting Mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Line Rated Current	12 A
Acceptable Input Voltage	100…125 V
Input current limits	15 A
Load Capacity	1400 VA
Input Frequency	50/60 Hz
Outlet type and quantity	14 NEMA 5-15R

Environment
Product Certifications	cUL Listed METI Denan UL Listed
Ambient air temperature for operation	32…113 °F (0…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304207061

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	25.5 in (64.8 cm)
Package 1 Width	6.0 in (15.2 cm)
Package 1 Length	7.008 in (17.8 cm)
Package weight(Lbs)	6.44 lb(US) (2.92 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	5.95 lbs
Dimensions	21.1 × 6.3 × 6.9 in
