APC/Schneider Electric Rack PDU PN AP9566

$313.00

Features 12 C13 outlets for extensive power distribution

Horizontal mounting to fit various rack configurations

Supports up to 16A, 208V power distribution

Includes tool-less mounting kit for quick setup

Rack PDU, Basic, 1U, 16A, 208V(12)C13

Description

APC/Schneider Electric Rack PDU PN AP9566

Name: APC/Schneider Electric Rack PDU PN AP9566
Brand: APC/Schneider Electric
SKU: AP9566
Availability: InStock

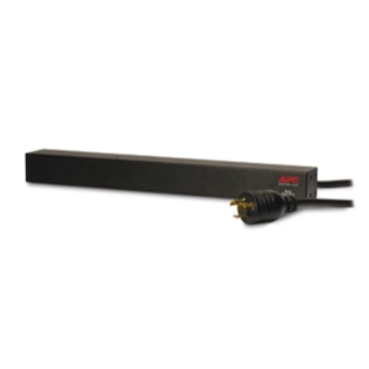

APC NetShelter Basic Rack PDU, 1U, 16A, 208V, 12 C13 outlets

APC/Schneider Electric Rack PDU PN AP9566 is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets

Complementary
Input Voltage	200 V 208 V 230 V
Height	1.7 in (44 mm)
Width	17.6 in (447 mm)
Output Voltage	208 V
Depth	2.2 in (57 mm)
Net Weight	5.5 lb(US) (2.5 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	NEMA L6-20P
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Line Rated Current	16 A
Input current limits	20 A
Load Capacity	3328 VA
Input Frequency	50/60 Hz
Outlet type and quantity	12 IEC 60320 C13

Environment
Product Certifications	cUL Listed UL Listed
Standards	UL 60950
Ambient air temperature for operation	32…113 °F (0…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304213048

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.8 in (7 cm)
Package 1 Width	9.02 in (22.9 cm)
Package 1 Length	18.3 in (46.4 cm)
Package weight(Lbs)	8.02 lb(US) (3.64 kg)

Contractual warranty
Warranty	2 years repair or replace

Videos

Specs

Additional information

Weight	4.9 lbs
Dimensions	9 × 18.2 × 2.7 in
