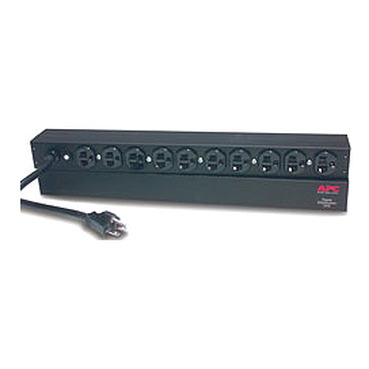

APC/Schneider Electric Rack PDU PN AP9563

$313.00

Features 10 NEMA 5-20R outlets for comprehensive power distribution

Horizontal mounting to fit various rack configurations

Supports up to 20A, 120V power distribution

Includes toolless mounting kit for quick setup

Rack PDU, Basic, 1U, 20A, 120V(10)5-20;

Description

APC/Schneider Electric Rack PDU PN AP9563

Name: APC/Schneider Electric Rack PDU PN AP9563
Brand: APC/Schneider Electric
SKU: AP9563
Availability: InStock

APC NetShelter Basic Rack PDU, 1U, 20A, 120V, 10 NEMA 5-20 outlets, 5-20P inlet

APC/Schneider Electric Rack PDU PN AP9563 is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA 5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and an installation guide.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets

Complementary
Input Voltage	100 V 120 V
Height	1.7 in (44 mm)
Width	17.6 in (447 mm)
Output Voltage	120 V
Depth	2.2 in (57 mm)
Net Weight	5.5 lb(US) (2.5 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	NEMA 5-20P
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Line Rated Current	16 A
Input current limits	20 A
Load Capacity	1920 VA
Input Frequency	50/60 Hz
Outlet type and quantity	10 NEMA 5-20R

Environment
Product Certifications	cUL Listed UL Listed
Ambient air temperature for operation	23…113 °F (-5…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304203889

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.8 in (7 cm)
Package 1 Width	9.02 in (22.9 cm)
Package 1 Length	18.3 in (46.4 cm)
Package weight(Lbs)	8.02 lb(US) (3.64 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	6.15 lbs
Dimensions	18.3 × 9.1 × 2.6 in
