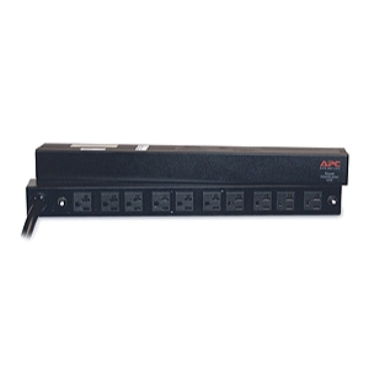

APC/Schneider Electric RACK PDU PN AP9560

$525.00

Supports up to 30A, 120V power distribution

Equipped with 10 NEMA 5-20R outlets for versatile power connections

Horizontal mounting to fit various rack configurations

12 ft cord for flexible installation

RACK PDU,BACIC,1U,30A,120V (10)5-20

Description

APC/Schneider Electric RACK PDU PN AP9560

Name: APC/Schneider Electric RACK PDU PN AP9560
Brand: APC/Schneider Electric
SKU: AP9560
Availability: InStock

APC NetShelter Basic Rack PDU, 1U, 30A, 120V, 10 NEMA 5-20 outlets

APC/Schneider Electric RACK PDU PN AP9560 is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	11.98 ft (3.65 m)
Number of cables	1
Provided Equipment	User Manual Rack Mounting brackets

Complementary
Input Voltage	100 V 120 V
Height	1.7 in (44 mm)
Width	17.6 in (447 mm)
Output Voltage	120 V
Depth	2.2 in (57 mm)
Net Weight	5.5 lb(US) (2.5 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	NEMA L5-30P
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Line Rated Current	24 A
Acceptable Input Voltage	90…132 V
Max line current	24 A
Input current limits	30 A
Load Capacity	2880 VA
Input Frequency	50/60 Hz
Outlet type and quantity	10 NEMA 5-20R

Environment
Product Certifications	cUL Listed UL Listed
Standards	UL 60950
Ambient air temperature for operation	5…113 °F (-15…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
Category	11309-APC RESALE PRODUCTS
Discount Schedule	APC1
GTIN	731304192930
Returnability	No
Country of origin	IN

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.0 in (15.2 cm)
Package 1 Width	7.0 in (17.7 cm)
Package 1 Length	19.1 in (48.6 cm)
Package weight(Lbs)	8.02 lb(US) (3.64 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	7.25 lbs
Dimensions	19.2 × 6.2 × 6.7 in
