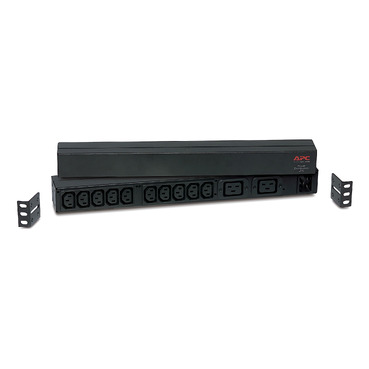

APC/Schneider Electric Rack PDU PN AP9559

$455.00

Features 10 C13 and 2 C19 outlets for comprehensive power distribution

Horizontal mounting to fit various rack configurations

Supports up to 16A, 208 and 230V power distribution

Includes toolless mounting kit for quick setup

Rack PDU,Basic, 1U, 16A 208 230V, (10)C1

Description

APC/Schneider Electric Rack PDU PN AP9559

Name: APC/Schneider Electric Rack PDU PN AP9559
Brand: APC/Schneider Electric
SKU: AP9559
Availability: InStock

APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets

APC/Schneider Electric Rack PDU PN AP9559 is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	8.17 ft (2.49 m)
Number of cables	1
Provided Equipment	User Manual Rack Mounting brackets

Complementary
Input Voltage	120 V 208 V 230 V
Height	1.7 in (44 mm)
Width	17.6 in (447 mm)
Output Voltage	120 V 208 V 230 V
Depth	2.2 in (57 mm)
Net Weight	2.16 lb(US) (0.98 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Input Plug Type	IEC 60320 C20
Mounting Mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
Acceptable Input Voltage	90…250 V
Max line current	16 A
Input current limits	16 A
Load Capacity	3680 VA
Input Frequency	50/60 Hz
Outlet type and quantity	10 IEC 60320 C13 2 IEC 60320 C19

Environment
Product Certifications	cUL Listed CE UL Listed VDE Victoria
Ambient air temperature for operation	32…113 °F (0…45 °C)
Relative Humidity	0…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304123521

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.5 in (16.5 cm)
Package 1 Width	19.02 in (48.3 cm)
Package 1 Length	6.0 in (15.2 cm)
Package weight(Lbs)	5.192 lb(US) (2.355 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	5.35 lbs
Dimensions	19.2 × 6.2 × 6.9 in
