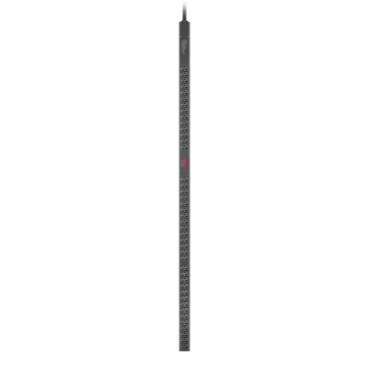

APC/Schneider Electric Rack PDU PN AP7563

Name: APC/Schneider Electric Rack PDU PN AP7563
Brand: APC/Schneider Electric
SKU: AP7563
Availability: InStock

APC NetShelter Basic Rack PDU, Zero U, 5.7kW, 120 and 208V, 21 5-20 and 6 L6-20 outlet

APC/Schneider Electric Rack PDU PN AP7563 is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 21 NEMA 5-20R outlets and 6 NEMA L6-20R outlets, providing ample connections for IT equipment. It includes a 3-foot power cord with a NEMA L21-20P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Specifications

Overview
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Basic
Cord length	3.0 ft (0.9 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets Toolless Mounting Kit

Complementary
Input Voltage	208 V 3 phase
Height	70 in (1778 mm)
Width	2.2 in (56 mm)
Output Voltage	120 V 208 V
Depth	1.7 in (44 mm)
Net Weight	12.04 lb(US) (5.46 kg)
Mounting Location	Side
Mounting preference	No preference
Input Plug Type	NEMA L21-20P
Mounting Mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Line Rated Current	16 A
Input current limits	20 A
Load Capacity	5700 VA
Input Frequency	50/60 Hz
Outlet type and quantity	21 NEMA 5-20R 6 NEMA L6-20R

Environment
Product Certifications	cUL Listed UL Listed
Standards	CSA C22.2 No. 60950-1-03 UL 60950-1
Ambient air temperature for operation	32…113 °F (0…45 °C)
Relative Humidity	5…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	5…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304207924

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	84.02 in (213.4 cm)
Package 1 Width	5.0 in (12.7 cm)
Package 1 Length	6.0 in (15.2 cm)
Package weight(Lbs)	14.02 lb(US) (6.36 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	28 lbs
Dimensions	83.1 × 6.04 × 5 in
