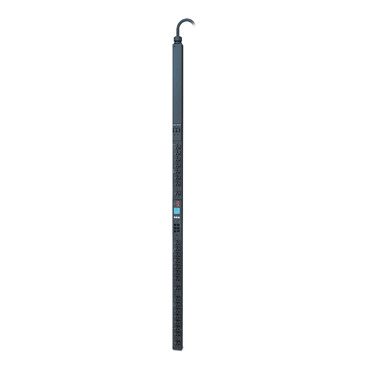

APC/Schneider Electric Rack PDU 2G PN AP8930

$1,920.00

Ideal for remote monitoring, reboots, powerup sequencing, scheduling power loads

Remote monitoring and control for up to 4 PDUs from one IP address

Enhance cybersecurity: 1 year subscription to Secure NMC System included

2 year warranty & Green PremiumTM label (see specifications)

Operates in high temperatures (60°C / 140°F) and actively measures amps, kW, kWh

Rack PDU 2G, Switched, ZeroU,20A, 100-12

SKU: AP8930 Category: APC Power Distribution Units Brand: APC/Schneider Electric

Description

APC/Schneider Electric Rack PDU 2G PN AP8930

Name: APC/Schneider Electric Rack PDU 2G PN AP8930
Brand: APC/Schneider Electric
SKU: AP8930
Availability: InStock

APC NetShelter Switched Rack PDU, 0U, 20A, 100-120V, 24 NEMA 5-20R outlets

APC/Schneider Electric Rack PDU 2G PN AP8930 enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Specifications

Overview
Presentation	APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Switched
Cord length	9.5 ft (2.9 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets Serial configuration cable Safety guide

Complementary
Input Voltage	120 V
Height	70.5 in (1791 mm)
Width	2.2 in (55 mm)
Output Voltage	120 V
Depth	1.8 in (46 mm)
Net Weight	14.37 lb(US) (6.52 kg)
Mounting Location	Side
Mounting preference	No preference
Input Plug Type	NEMA L5-20P
Mounting Mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Line Rated Current	16 A
Acceptable Input Voltage	100…120 V
Input current limits	20 A
Load Capacity	1920 VA
Input Frequency	50/60 Hz
Outlet type and quantity	24 NEMA 5-20R

Environment
Product Certifications	cUL Listed UL Listed
Standards	FCC Part 15 class A ICES-003 UL 60950-1
Ambient air temperature for operation	23…140 °F (-5…60 °C)
Relative Humidity	5…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	5…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
Category	80230-IG SEBA TO SEUSA
Discount Schedule	BMS1
GTIN	731304307518
Returnability	No
Country of origin	IN

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	79.0 in (200.6 cm)
Package 1 Width	4.26 in (10.83 cm)
Package 1 Length	6.48 in (16.47 cm)
Package weight(Lbs)	19.0 lb(US) (8.6 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	17 lbs
Dimensions	78.5 × 6.5 × 4.3 in
