APC/Schneider Electric Rack PDU 2G PN AP8870

$1,455.00

Ideal for colocation, large or remote data center operators

Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)

Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity .

Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3

Zero U toolless installation

Rack PDU 2G, Metered, ZeroU,

SKU: AP8870 Category: APC Power Distribution Units Brand: APC/Schneider Electric

Description

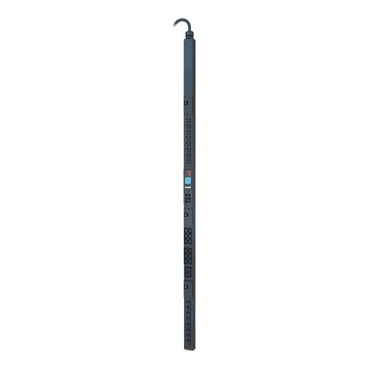

APC/Schneider Electric Rack PDU 2G PN AP8870

Name: APC/Schneider Electric Rack PDU 2G PN AP8870
Brand: APC/Schneider Electric
SKU: AP8870
Availability: InStock

APC NetShelter Metered Rack PDU, 2G, 0U, 30A, 100-120/200-240V, 16 NEMA 5-20R, 12 C13, 2 C19 outlets

APC/Schneider Electric Rack PDU 2G PN AP8870 provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Overview
Presentation	APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Lead time	Usually in Stock

Main
Color	Black
Product or Component Type	PDU
PDU Type	Metered
Other Output Voltage	240 V
Cord length	9.5 ft (2.9 m)
Number of cables	1
Provided Equipment	Installation guide Rack Mounting brackets Serial configuration cable Safety guide

Complementary
Input Voltage	120 V 208 V
Height	70.5 in (1791 mm)
Width	2.2 in (55 mm)
Output Voltage	120 V
Depth	1.7 in (44 mm)
Net Weight	14.07 lb(US) (6.38 kg)
Mounting Location	Side
Mounting preference	No preference
Input Plug Type	NEMA L14-30P
Mounting Mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Line Rated Current	24 A
Input current limits	30 A
Load Capacity	4992 VA
Input Frequency	50/60 Hz
Outlet type and quantity	16 NEMA 5-20R 12 IEC 60320 C13 2 IEC 60320 C19

Environment
Product Certifications	cUL Listed UL Listed
Standards	FCC Part 15 class A ICES-003 UL 60950-1
Ambient air temperature for operation	23…140 °F (-5…60 °C)
Relative Humidity	5…95 %
Operating altitude	0…10000 ft
Ambient Air Temperature for Storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	5…95 %
Storage altitude	0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN	731304307501
Country of origin	IN

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	79.0 in (200.6 cm)
Package 1 Width	4.26 in (10.83 cm)
Package 1 Length	6.48 in (16.47 cm)
Package weight(Lbs)	15.85 lb(US) (7.19 kg)

Contractual warranty
Warranty	2 years repair or replace

Specs

Videos

Additional information

Weight	20 lbs
Dimensions	79 × 6.12 × 4.02 in
