Description

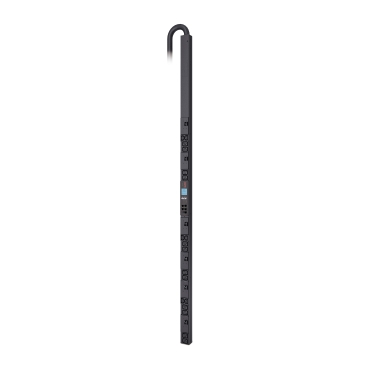

APC/Schneider Electric Rack PDU 2G PN AP8866
APC NetShelter Metered Rack PDU, 2G, 0U, 17.2kW, 208V, 6 C13 and 12 C19 outlets
APC/Schneider Electric Rack PDU 2G PN AP8866 distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable.
Specifications
Overview
| Presentation |
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable. |
| Lead time |
Usually in Stock |
Main
| Color |
Black |
| Product or Component Type |
PDU |
| PDU Type |
Metered |
| Cord length |
5.97 ft (1.82 m) |
| Number of cables |
1 |
| Provided Equipment |
Installation guide
Rack Mounting brackets
Serial configuration cable
Safety guide |
Complementary
| Input Voltage |
208 V 3 phase |
| Height |
72.008 in (1829 mm) |
| Width |
2.2 in (56 mm) |
| Output Voltage |
208 V |
| Depth |
2.008 in (51 mm) |
| Net Weight |
20.9 lb(US) (9.5 kg) |
| Mounting Location |
Side |
| Mounting preference |
No preference |
| Input Plug Type |
IEC 60309 60 A 3P+PE |
| Mounting Mode |
Rack-mounted |
| Rack units |
0U |
| Mounting position |
Vertical |
| Line Rated Current |
48 A |
| Max line current |
48 A |
| Input current limits |
60 A |
| Load Capacity |
17300 VA |
| Input Frequency |
50/60 Hz |
| Outlet type and quantity |
6 IEC 60320 C13
12 IEC 60320 C19 |
Environment
| Product Certifications |
cUL Listed
UL Listed
VCCI Class A |
| Standards |
EN 55022 Class A
EN 55024
EN 61000-3-2
EN 61000-3-3
FCC Part 15 class A
ICES-003 |
| Ambient air temperature for operation |
23…140 °F (-5…60 °C) |
| Relative Humidity |
5…95 % |
| Operating altitude |
0…10000 ft |
| Ambient Air Temperature for Storage |
-13…149 °F (-25…65 °C) |
| Storage Relative Humidity |
5…95 % |
| Storage altitude |
0…50000 ft (0…15240 m) |
Ordering and shipping details
| GTIN |
731304289906 |
| Country of origin |
IN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
84.6 in (214.9 cm) |
| Package 1 Width |
4.4 in (11.2 cm) |
| Package 1 Length |
8.7 in (22.1 cm) |
| Package weight(Lbs) |
29.87 lb(US) (13.55 kg) |
Contractual warranty
| Warranty |
2 years repair or replace |
