APC/Schneider Electric 120 RACK PDU PN AP9564

APC/Schneider Electric 120 RACK PDU PN AP9564

$313.00

Features 10 NEMA 5-20R outlets for extensive power distribution
Horizontal mounting to fit various rack configurations
Supports up to 20A, 120V power distribution
Includes toolless mounting kit for quick setup

120 RACK PDU,BASIC,1U,20A, 120V,(10)5-20

Description

APC/Schneider Electric 120 RACK PDU PN AP9564

APC NetShelter Basic Rack PDU, 1U, 20A, 120V, 10 NEMA 5-20 outlets, L5-20P inlet

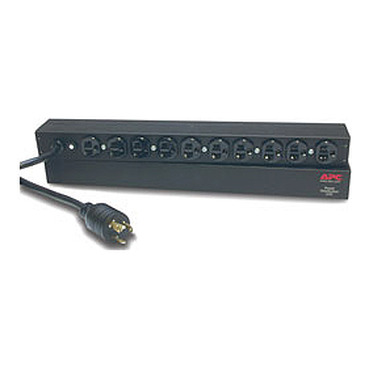

APC/Schneider Electric 120 RACK PDU PN AP9564 is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and an installation guide.

Specifications

Overview
Lead time Usually in Stock
Main
Color Black
Product or Component Type PDU
PDU Type Basic
Cord length 11.98 ft (3.65 m)
Number of cables 1
Provided Equipment Installation guide
Rack Mounting brackets
Complementary
Input Voltage 100 V
120 V
Height 1.7 in (44 mm)
Width 17.6 in (447 mm)
Output Voltage 120 V
Depth 2.2 in (57 mm)
Net Weight 5.5 lb(US) (2.5 kg)
Mounting Location Front
Rear
Mounting preference No preference
Input Plug Type NEMA L5-20P
Mounting Mode Rack-mounted
Rack units 1U
Mounting position Horizontal
Line Rated Current 16 A
Input current limits 20 A
Load Capacity 1920 VA
Input Frequency 50/60 Hz
Outlet type and quantity 10 NEMA 5-20R
Environment
Product Certifications cUL Listed
UL Listed
Ambient air temperature for operation 23…113 °F (-5…45 °C)
Relative Humidity 0…95 %
Operating altitude 0…10000 ft
Ambient Air Temperature for Storage -13…149 °F (-25…65 °C)
Storage Relative Humidity 0…95 %
Storage altitude 0…50000 ft (0…15240 m)
Ordering and shipping details
Category 11309-APC RESALE PRODUCTS
Discount Schedule APC1
GTIN 731304203872
Returnability No
Country of origin IN
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.8 in (7 cm)
Package 1 Width 9.02 in (22.9 cm)
Package 1 Length 18.3 in (46.4 cm)
Package weight(Lbs) 8.02 lb(US) (3.64 kg)
Contractual warranty
Warranty 2 years repair or replace

Specs

Videos

Additional information

Weight 5.6 lbs
Dimensions 8.9 × 18.5 × 2.8 in
